DJ console · Pioneer XDJ-AZ
RDJ

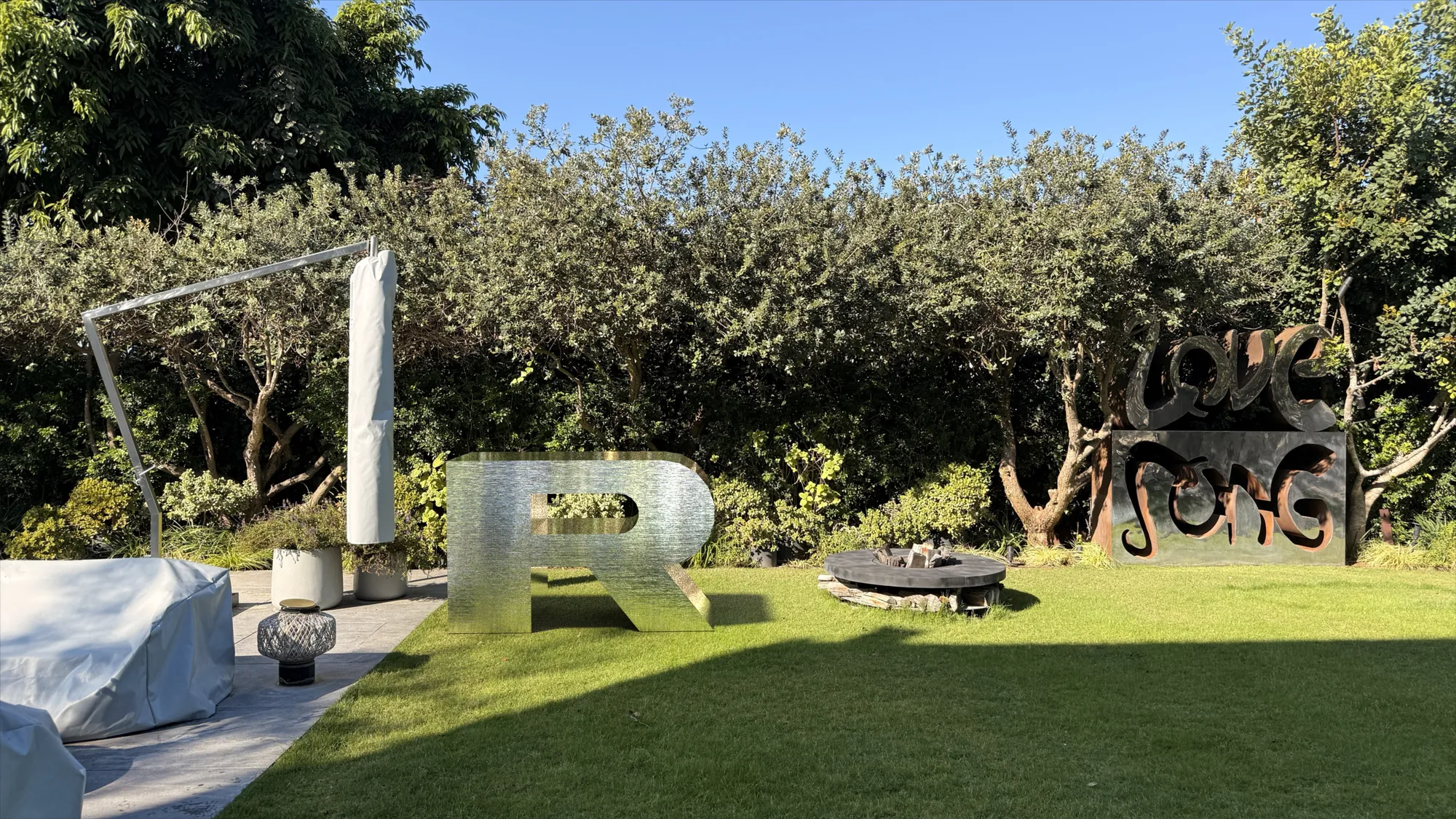

A DJ console in the shape of an R — the initial of the family it was built for — a 1.6 m letter standing on its own two legs, aluminium plates skinned in mirror stainless, the Pioneer XDJ-AZ set into the stroke; built for a private garden.
Drag to look
Shown as it was built. Write to the studio about this work
Specifications
Dimensions
W 1601 · D 612 · H 1043 mm
Compatibility
Pioneer XDJ-AZ
Construction
Nineteen flat aluminium 6061 members at 5 mm · thirteen folded stainless skins at 1.5 mm, 90 folds · eight 10 mm plastic tops · 171 through-bolts, 87 M3, 68 M5, 12 M8 and 4 M10
Delivery
14–27 business daysfrom confirmation · made to order, not held in stock
Modes
Fully assembled or DIY kit
Payment
Agreed personally at confirmation
Fabrication
Laser cutting
Every panel starts flat — cut from the fabrication model’s own files in aluminum, stainless or copper.
Press-brake bending
The aluminum frame folds to shape on a press brake; every angle lives in the model.
Bolted, never glued
Every panel is serviceable and the bolts are the ornament — fitted by hole size across the piece.
LED under the skin
A 3 mm frosted acrylic layer sits beneath the cladding; the seams take the light.
TECHNICAL SHEET · FRONT ISOMETRIC · FROM THE MODEL
TECHNICAL SHEET · PERSPECTIVE VIEW · FROM THE MODEL
TECHNICAL SHEET · MODEL VIEW · FROM THE MODEL
Technical preview — production DXF / STEP files remain with the studio and its fabrication partners.
